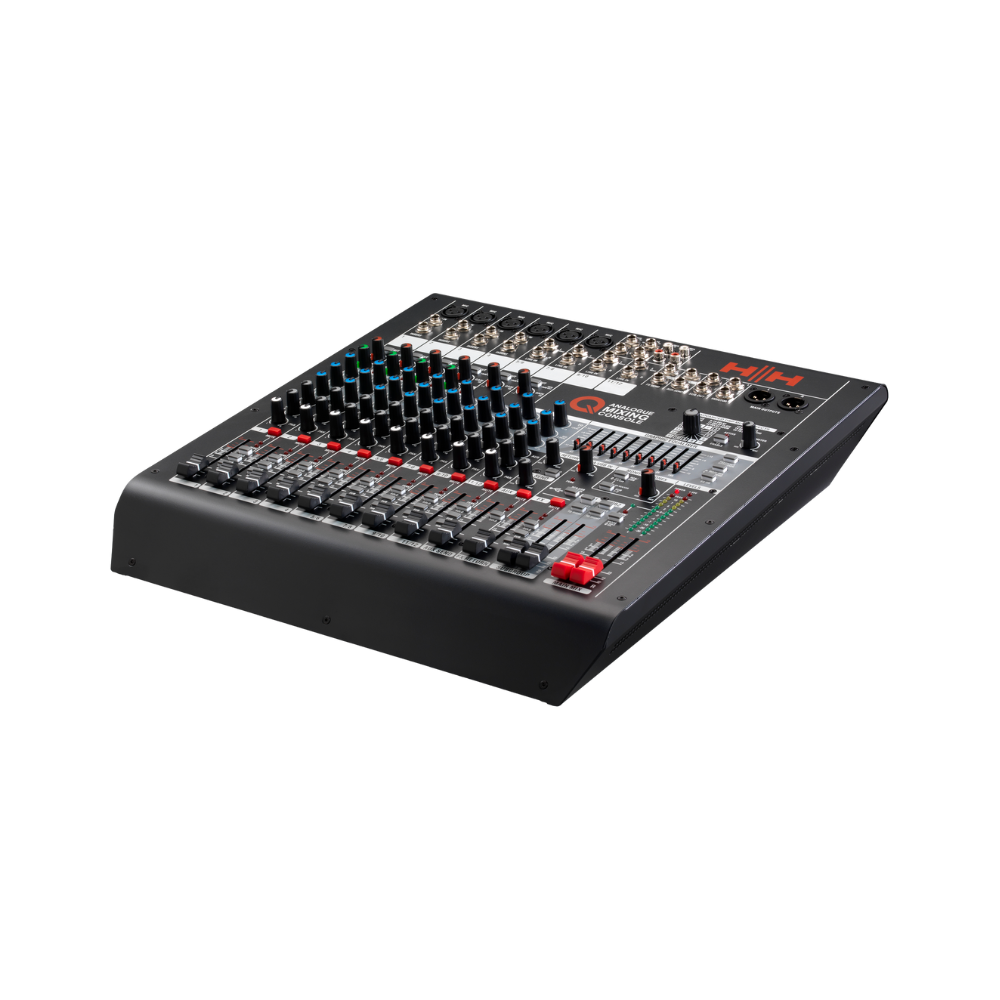

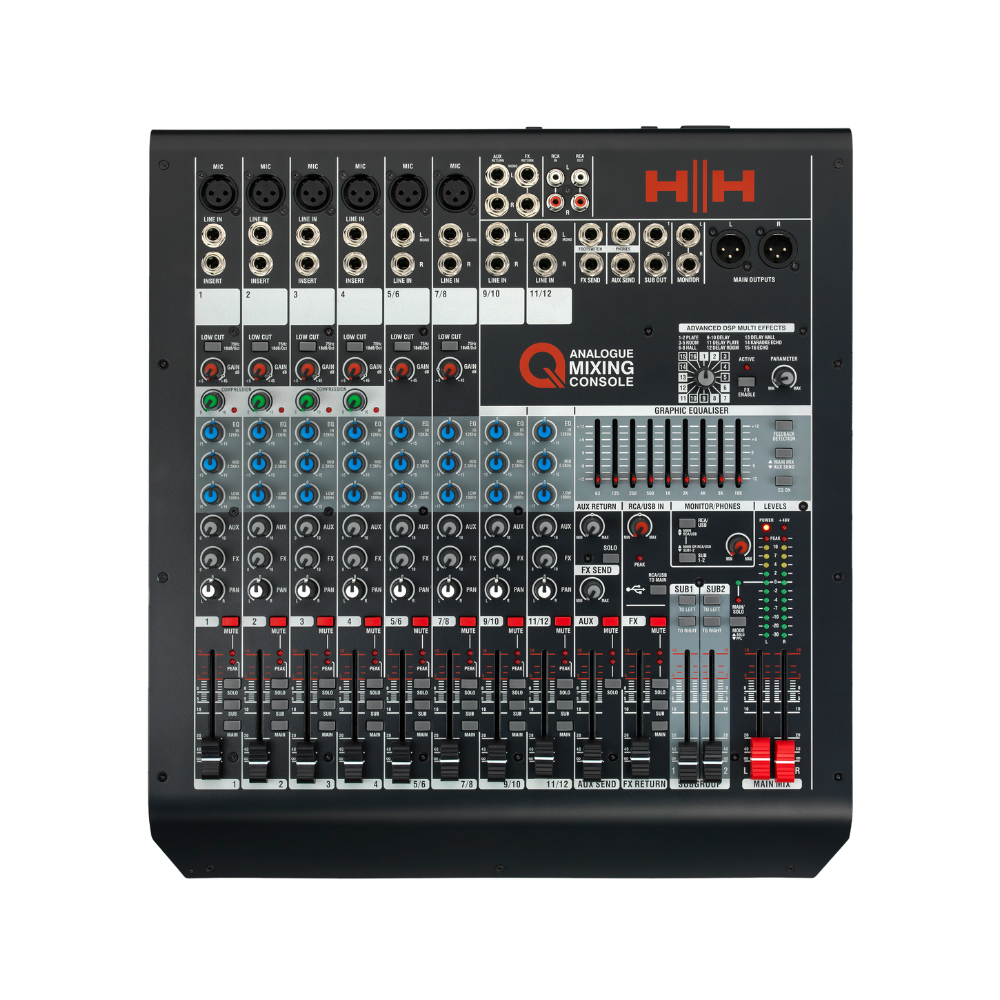

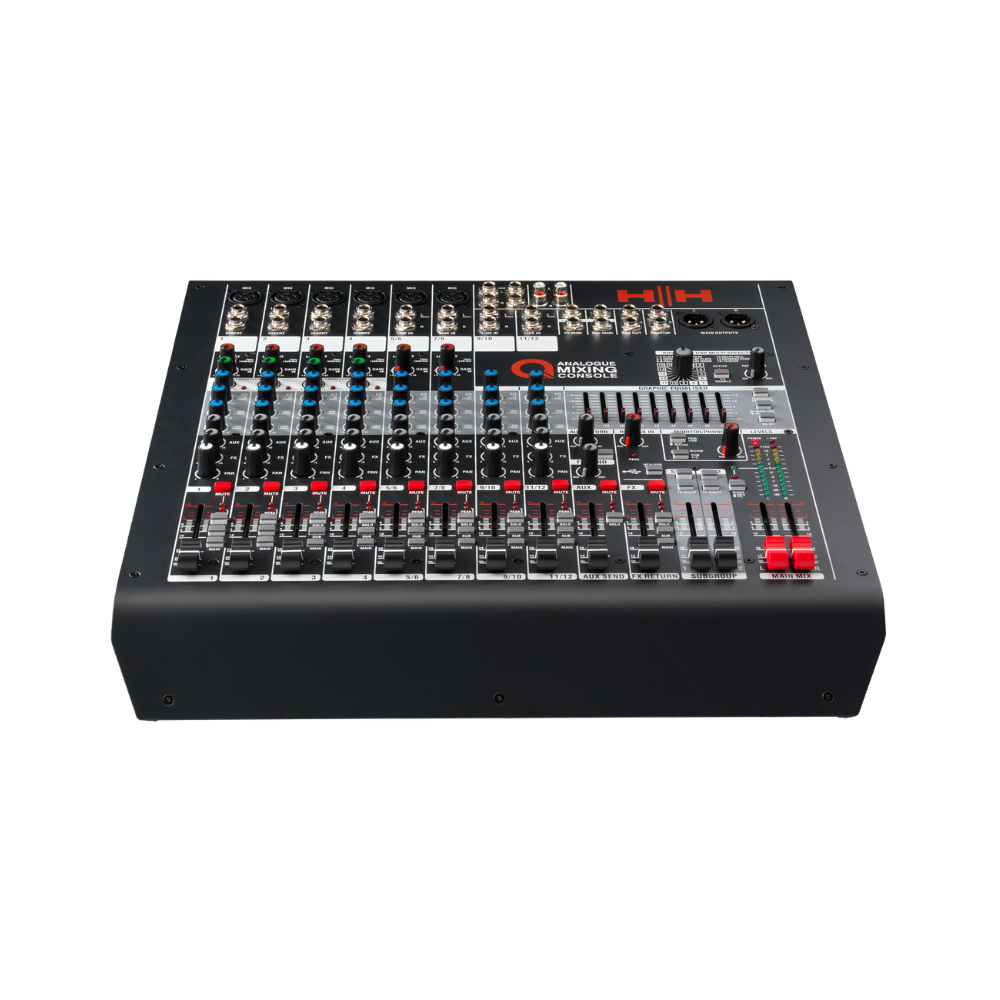

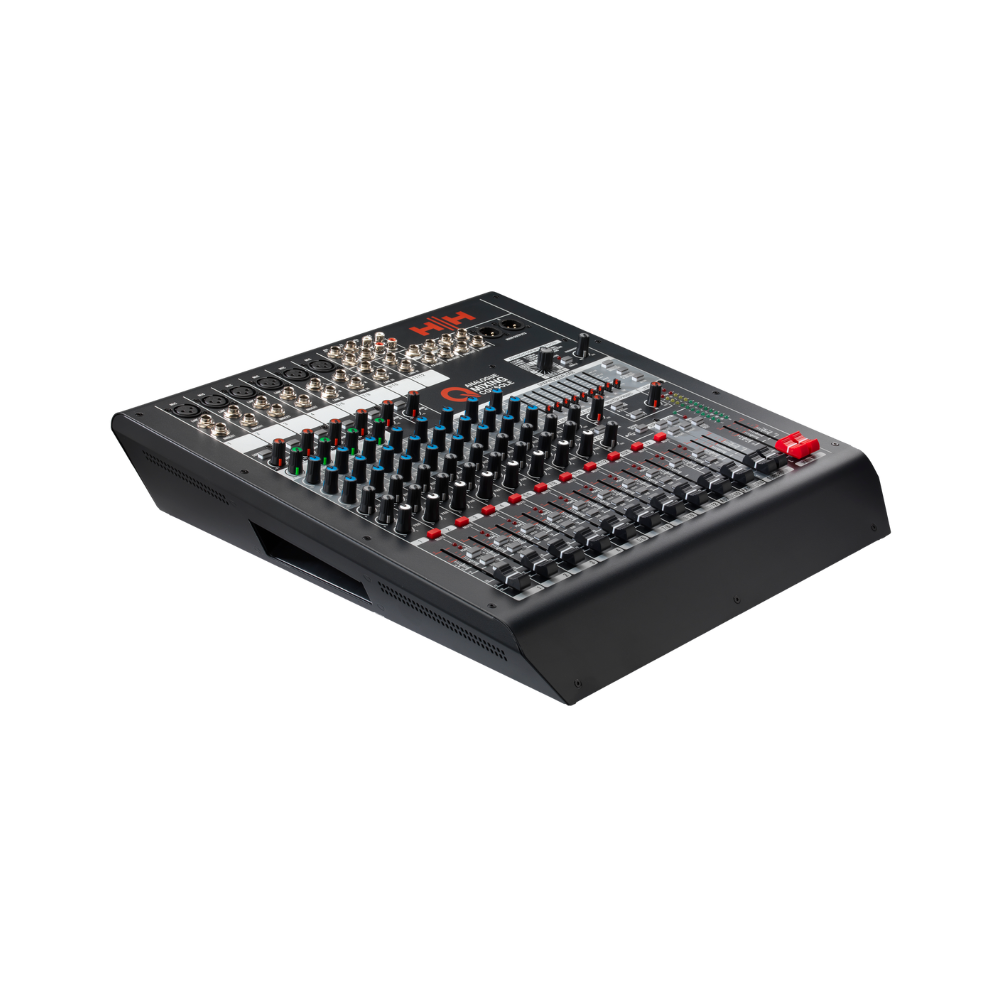

HH Q12FX 12-Channel Analogue Mixer with DSP & USB Interface

The HH Q12FX is a 12-channel analogue mixing console engineered in the UK, built to deliver professional audio performance with versatility. It includes 6 mic/line inputs with low-noise preamps, 4 mono line-ins, and 4 stereo line inputs for instruments and media sources. Channels 1-4 feature single-knob compressors, every channel offers a 3-band EQ and low-cut (75 Hz), and 16 built-in DSP effects give you creative freedom in shaping sound. With 2-in/2-out USB audio, 2 subgroups, a 9-band graphic EQ with feedback detection, comprehensive monitoring, phantom power, multiple AUX sends, and a robust build, the Q12FX is ideal for live shows, studio work, and mobile production.

Key Features

• 12 input channels: 6 mic/line inputs with low-noise preamps; mono insert and line-in options.

• 4 mono line-inputs + 4 stereo line-inputs for external instruments/media devices.

• Single-knob compressors on Channels 1-4 for dynamic control.

• 3-band EQ (Low ~100 Hz / Mid ~2.5 kHz / High ~12 kHz) on all channels, plus a 75 Hz low-cut filter on channels 1-8.

• 16 high-quality DSP effects (reverbs, delays, echoes etc.) with parameter control.

• 2-in / 2-out USB interface for recording & playback.

• Two SUB Groups for routing and grouping channels.

• 9-band master graphic EQ with feedback detection.

• Multiple outputs & monitoring: balanced main XLR outs, auxiliary sends, RCA in/out, headphone output.

• Global phantom power, pan control on every channel, LED level meters (12-point for main mix).

• Rugged, portable build – solid chassis made for live, studio & mobile use.

Applications

• Live performances & concerts (bands, DJs) in small to medium venues.

• Studio recording, podcasting & content creation.

• Rehearsals & mobile setups.

• Corporate events, educational institutions, houses of worship.
