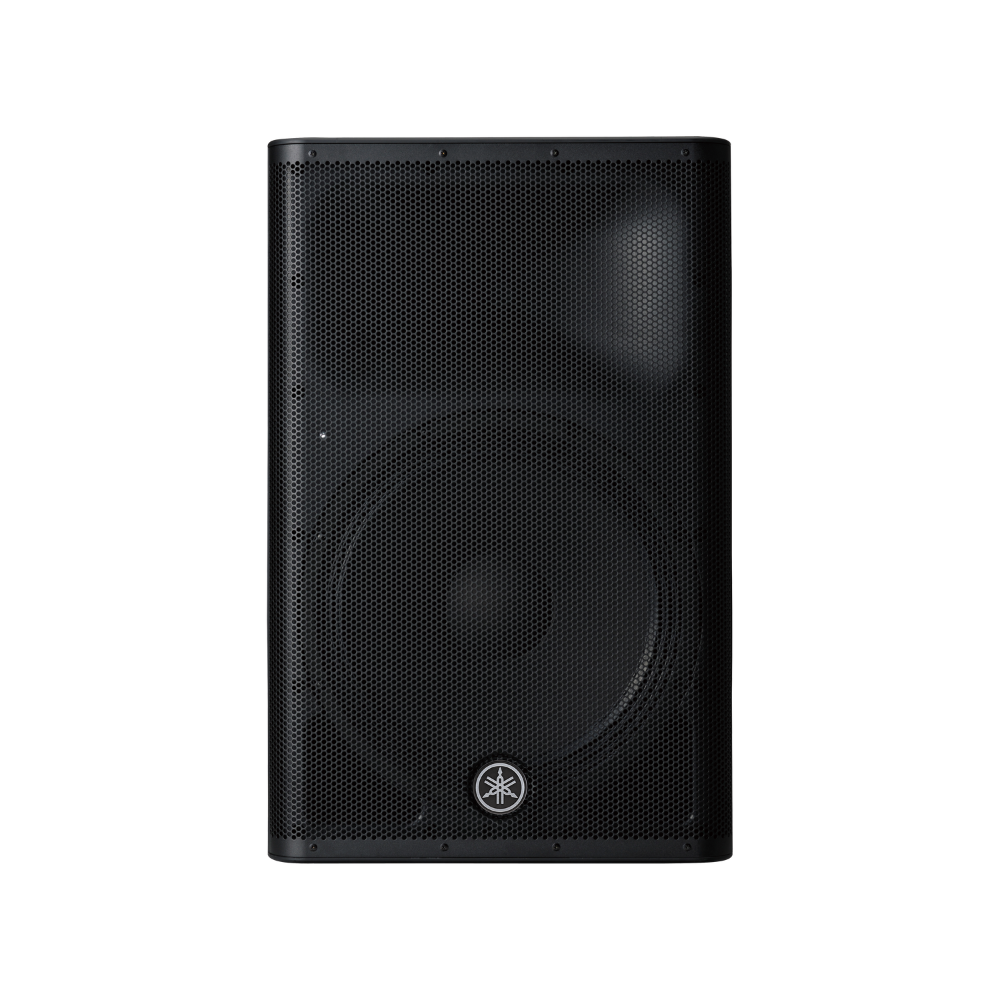

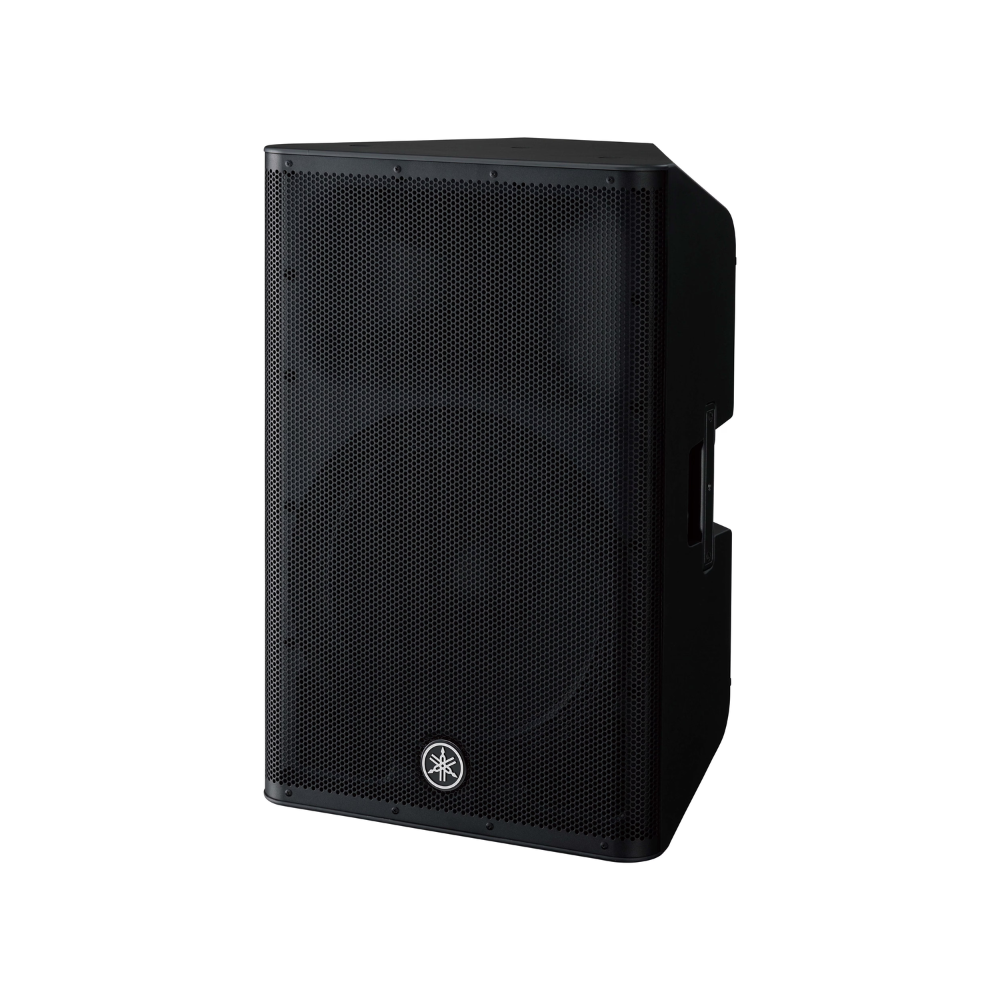

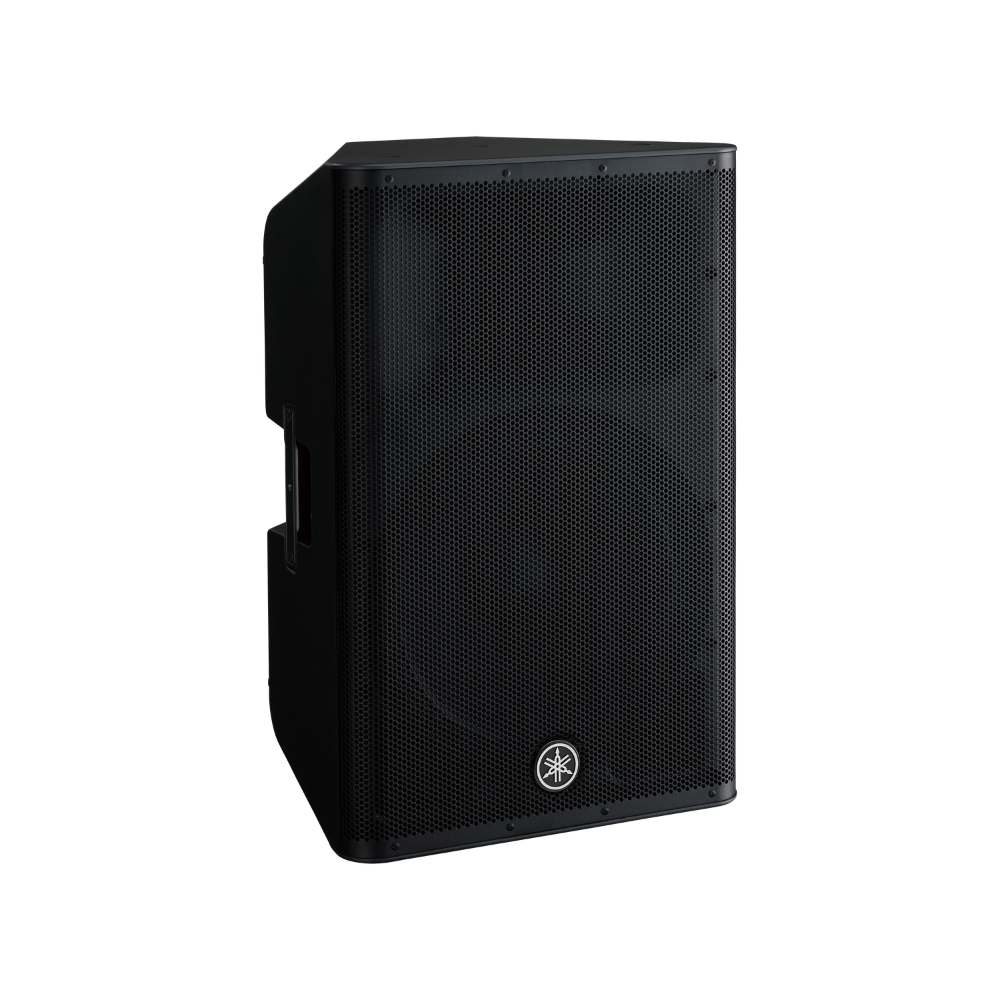

Yamaha DXR15MKII 1100W 15 inch Powered Speaker

The Yamaha DXR15mkII is a powerhouse full-range speaker that delivers high-definition audio, deep bass, and precise vocal clarity all packed into a lightweight, road-ready cabinet. Whether you’re reinforcing live vocals, running FOH at events, or building a mobile PA setup, the DXR15mkII brings 1100W of Class-D power and up to 134dB SPL, making it one of the loudest and cleanest speakers in its class.

More Power, Less Weight

At the heart of the DXR15mkII is a high-efficiency Class-D amplifier, paired with a custom 15″ low-distortion wooferand a newly upgraded 1.75″ Neodymium compression driver. This new driver is larger yet lighter, delivering extended high-frequency clarity up to 20 kHz—perfect for both speech and full-band reproduction.

Consistent Coverage, Front to Back

A newly designed 90° x 60° constant directivity horn provides wide, uniform dispersion. Unlike typical horns that lose definition off-axis, this design maintains consistent sound quality across the full coverage area—ensuring every listener gets the same mix.

Advanced DSP – The Power of D

Yamaha’s FIR-X™ tuning uses linear-phase filters and precise time alignment to optimize crossover response, minimize phase issues, and deliver exceptional clarity. A powerful 48-bit DSP processor handles everything from limiting and protection to dynamic EQ and signal routing—keeping your output clean, even at high volumes.

D-CONTOUR Intelligent Sound Shaping

DXR15mkII includes Yamaha’s D-CONTOUR, a multi-band compressor with two selectable modes:

• FOH/MAIN: Enhances low-end for standalone or pole-mounted use.

• MONITOR: Tames low-frequency buildup for clearer on-stage monitoring.

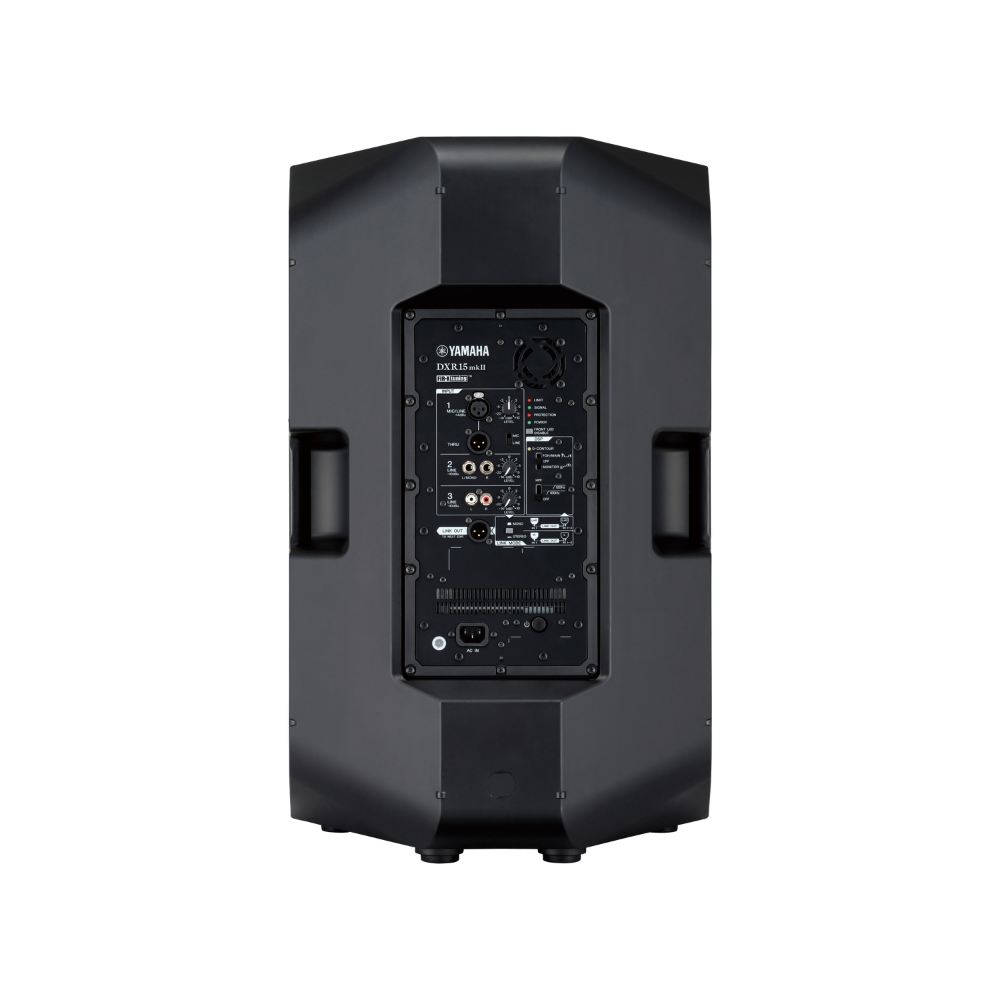

Flexible Onboard 3-Channel Mixer

The built-in 3-channel mixer supports mic, line, and RCA sources with individual volume controls:

• CH1: Mic/Line combo input with auto HPF when set to mic

• CH2: Line-level combo input

• CH3: RCA stereo input for playback devices

Linking and Thru options make it easy to daisy-chain speakers or run a full setup with just two DXR units.

Rugged, Lightweight Cabinet with Smart Design

The ABS enclosure is compact, non-resonant, and tough enough for touring. It features:

• Dual-angle pole mount (0° and 7° tilt)

• Mirror-mode wedge design for symmetrical stage monitoring

• Steel grille and aluminum handles for protection and portability

• Rigging points for suspended installs (eyebolts optional)

• Optional U-brackets for flexible horizontal/vertical mounting

Pair It with DXS Subwoofers for Full-Range Performance

Need more low end? The DXR15mkII integrates perfectly with Yamaha’s DXS Series subwoofers. Built-in HPF control lets you match the crossover to your sub, creating a tight, musical full-range system.
